UNF Threaded Protection Plug

Email
40664

UNF Compatible Thread Standard, Compatible Thread Size, 2.5 mm

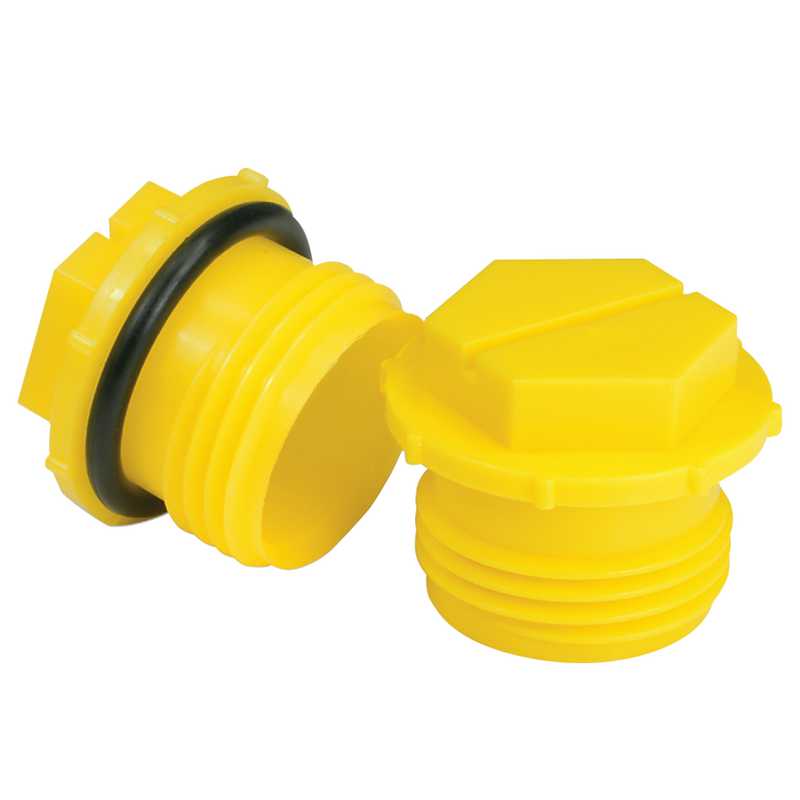

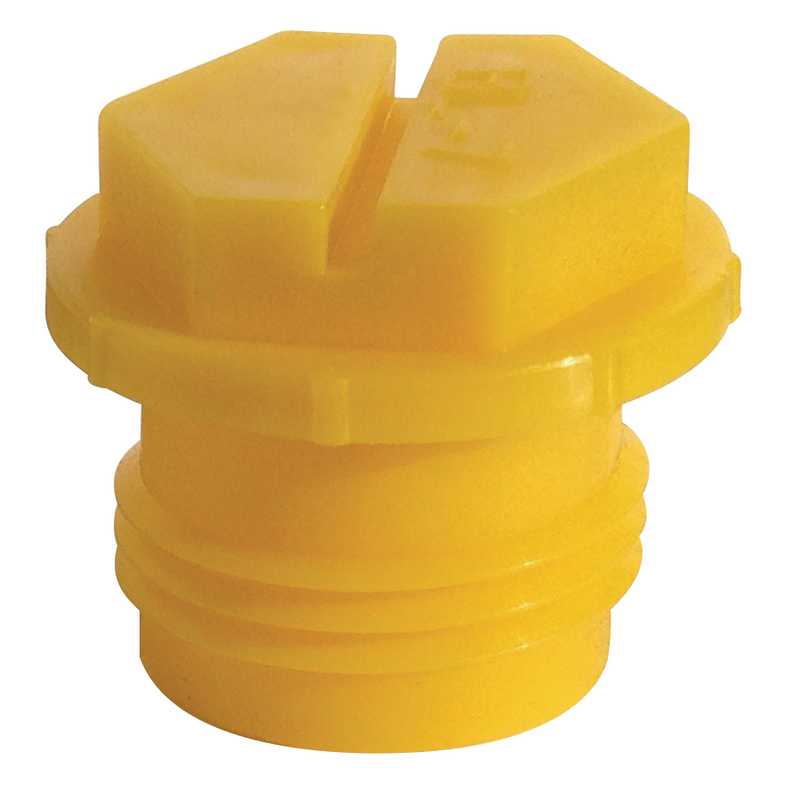

Threaded Protection Plugs - UNF Threads are widely used I hydraulic, pneumatic and general engineering industries. They come with a knurled head to easily grip the head and they offer an excellent protection from dirt, moisture and corrosion. They are suitable for UNF threads.

Yellow
Sample Part
Number
Compatible Thread Standard Compatible Thread Size Thread Engagement Fitting Style Material Colour Threaded Length Overall Height Overall Diameter Full Material Compatible Thread Standard (All) Compatible Thread Sizes (All)
Unit of
Measurements
Price
(Ex. GST)
Quantity Total
BL8H UNF 7/8-14 2.5 mm Screw Fit;O-Ring PP Yellow 14.2 mm 22.6 mm 26.9 mm Polypropylene UNF 7/8-14
0.00 ₨
BL8A UNF 7/8-14 2.5 mm Screw Fit PP Yellow 14.2 mm 22.6 mm 26.9 mm Polypropylene UNF 7/8-14
0.00 ₨
BL7J UNF 3/4-16 2.5 mm Screw Fit;O-Ring PP Yellow 13.2 mm 20.3 mm 23.9 mm Polypropylene UNF 3/4-16
0.00 ₨
BL7A UNF 3/4-16 2.5 mm Screw Fit PP Yellow 13.2 mm 20.3 mm 23.9 mm Polypropylene UNF 3/4-16
0.00 ₨
BL5K UNF 9/16-18 2.5 mm Screw Fit;O-Ring PP Yellow 10.7 mm 17.5 mm 19.1 mm Polypropylene UNF 9/16-18
0.00 ₨
BL5A UNF 9/16-18 2.5 mm Screw Fit PP Yellow 10.7 mm 17.5 mm 19.1 mm Polypropylene UNF 9/16-18
0.00 ₨
BL4B UNF 1/2-13 2.5 mm Screw Fit;O-Ring PP Black 10.4 mm 19.8 mm 17.5 mm Polypropylene UNF 1/2-13
0.00 ₨
BL4A UNF 1/2-13 2.5 mm Screw Fit PP Black 10.4 mm 19.8 mm 17.5 mm Polypropylene UNF 1/2-13
0.00 ₨
BL3L UNF 7/16-12 2.5 mm Screw Fit;O-Ring PP Yellow 9.9 mm 16.8 mm 15.8 mm Polypropylene UNF 7/16-12
0.00 ₨
BL3A UNF 7/16-12 2.5 mm Screw Fit PP Yellow 9.9 mm 16.8 mm 15.8 mm Polypropylene UNF 7/16-12
0.00 ₨
BL14C UNF 1-7/8-12 2.5 mm Screw Fit;O-Ring PP Yellow 19.1 mm 29.0 mm 54.0 mm Polypropylene UNF 1-7/8-12
0.00 ₨
BL14A UNF 1-7/8-12 2.5 mm Screw Fit PP Yellow 19.1 mm 29.0 mm 54.0 mm Polypropylene UNF 1-7/8-12
0.00 ₨
BL13D UNF 1-5/8-12 2.5 mm Screw Fit;O-Ring PP Yellow 19.6 mm 29.5 mm 42.8 mm Polypropylene UNF 1-5/8-12
0.00 ₨
BL13A UNF 1-5/8-12 2.5 mm Screw Fit PP Yellow 19.6 mm 29.5 mm 42.8 mm Polypropylene UNF 1-5/8-12
0.00 ₨
BL12H UNF 1-5/16-12 2.5 mm Screw Fit;O-Ring PP Yellow 17.8 mm 27.4 mm 40.9 mm Polypropylene UNF 1-5/16-12
0.00 ₨
BL12A UNF 1-5/16-12 2.5 mm Screw Fit PP Yellow 17.8 mm 27.4 mm 40.9 mm Polypropylene UNF 1-5/16-12
0.00 ₨
BL11D UNF 1-3/16-12 2.5 mm Screw Fit;O-Ring PP Yellow 17.8 mm 27.7 mm 38.1 mm Polypropylene UNF 1-3/16-12
0.00 ₨
BL11A UNF 1-3/16-12 2.5 mm Screw Fit PP Yellow 17.8 mm 27.7 mm 38.1 mm Polypropylene UNF 1-3/16-12
0.00 ₨
BL10I UNF 1-1/16-12 2.5 mm Screw Fit;O-Ring PP Yellow 16.8 mm 25.4 mm 33.3 mm Polypropylene UNF 1-1/16-12
0.00 ₨
BL10A UNF 1-1/16-12 2.5 mm Screw Fit PP Yellow 16.8 mm 25.4 mm 33.3 mm Polypropylene UNF 1-1/16-12
0.00 ₨
