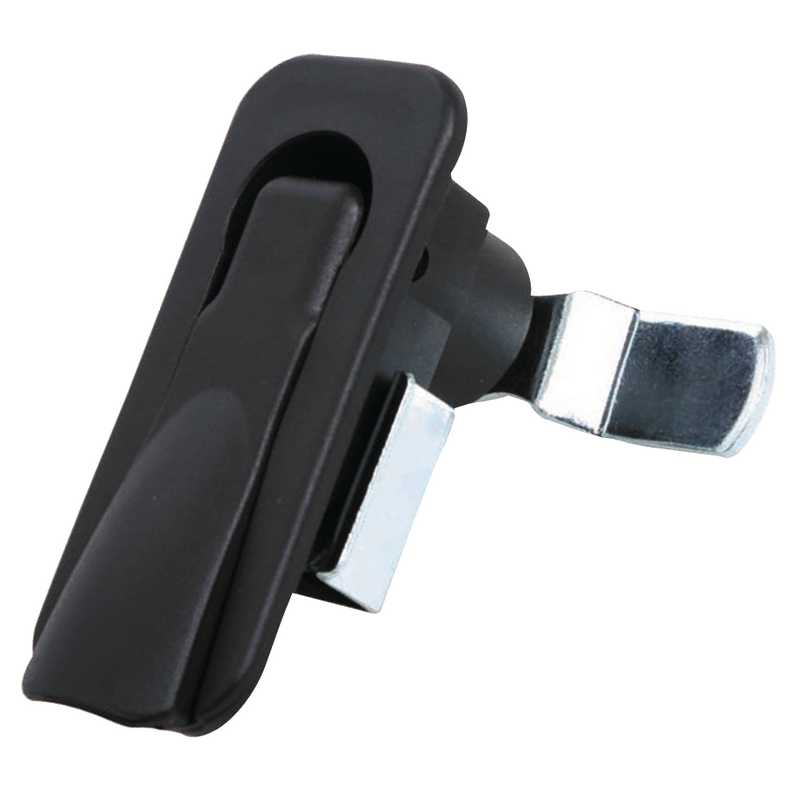

Lift & Turn Cam Latches

Email
18430
Sample Part
Number 		Colour Finish Grip Range Material Cam Material Compression Grip Range Reversed Overall Length(mm) Mounting Hole Dimensions Keying Type Mounting Hole Width Mounting Hole Length Handle Height Minimum Mounting Hole Size Body Center to Keeper Frame Distance Maximum Mounting Hole Size Handle Length Latch Material Body Height Full Material
Unit of
Measurements 		Price
(Ex. GST)		 Quantity Total
17021203E Natural Black Powder Coated 50.0 - 57.5 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 0 - 2.5 mm 80.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 80.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17021202E Natural Black Powder Coated 36.5 - 44.0 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 8.5 - 16.0 mm 80.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 80.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17021201E Natural Black Powder Coated 22.5 - 30.0 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 22.5 - 30.0 mm 80.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 80.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17021103E Natural Chrome Plated 50.0 - 57.5 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 0 - 2.5 mm 80.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 80.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17021102E Natural Chrome Plated 36.5 - 44.0 mm Die-Cast Zinc Alloy Die-Cast Zinc Alloy Compresses 8.5 - 16.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm ---- ---- ---- 80.0 mm Die-Cast Zinc Alloy ---- Die-Cast Zinc Alloy
0.00 ₨
17021101E Natural Chrome Plated 22.5 - 30.0 mm Die-Cast Zinc Alloy Die-Cast Zinc Alloy Compresses 22.5 - 30.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm ---- ---- ---- 80.0 mm Die-Cast Zinc Alloy ---- Die-Cast Zinc Alloy
0.00 ₨
17011203E Natural Black Powder Coated 50.0 - 57.5 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 0 - 2.5 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 55.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17011202E Natural Black Powder Coated 36.5 - 44.0 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 8.5 - 16.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 55.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17011201E Natural Black Powder Coated 22.5 - 30.0 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 22.5 - 30.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 55.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17011103E Natural Chrome Plated 50.0 - 57.5 mm Die-Cast Zinc Alloy Zinc Plated Steel Compresses 0 - 2.5 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm 20.2 mm 33.0 mm 22.2 mm 55.0 mm Die-Cast Zinc Alloy 31.0 mm Die-Cast Zinc Alloy
0.00 ₨
17011102E Natural Chrome Plated 36.5 - 44.0 mm Die-Cast Zinc Alloy Die-Cast Zinc Alloy Compresses 8.5 - 16.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm ---- ---- ---- 55.0 mm Die-Cast Zinc Alloy ---- Die-Cast Zinc Alloy
0.00 ₨
17011101E Natural Chrome Plated 22.5 - 30.0 mm Die-Cast Zinc Alloy Die-Cast Zinc Alloy Compresses 22.5 - 30.0 mm 55.0 mm 22.2 x 20.2 mm Keyless No Locking 20.2 mm 22.2 mm 18.0 mm ---- ---- ---- 55.0 mm Die-Cast Zinc Alloy ---- Die-Cast Zinc Alloy
0.00 ₨
