Sealing Slottex Plugs
Sealing Slottex Plugs

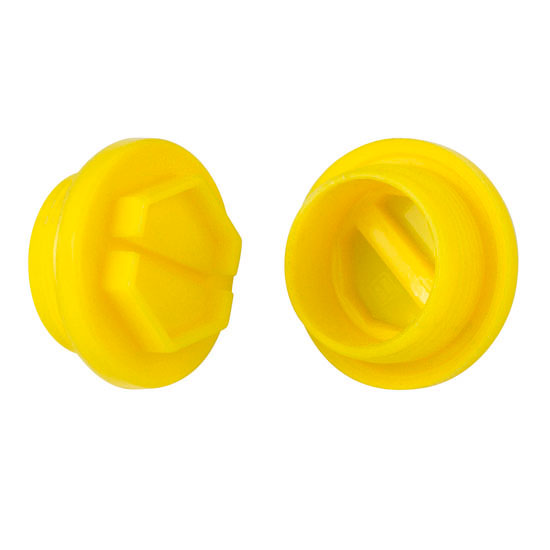

Sealing slottex plugs are designed with double sealing ring under the flange which provides perfect sealing. These gadgets stay easier to fix and remove and give good protection; it can be tightened with a screwdriver or a power tool. The head design of sealing slottex plug prevents liquid trapping.

Applications and Benefits of Sealing slottex plugs

  • The double sealing ring under the flange gives perfect sealing.
  • It can be tightened further.
  • The head design is unique and it prevents liquid trapping.
  • Available in yellow LDPE material.
Sample Part
Number

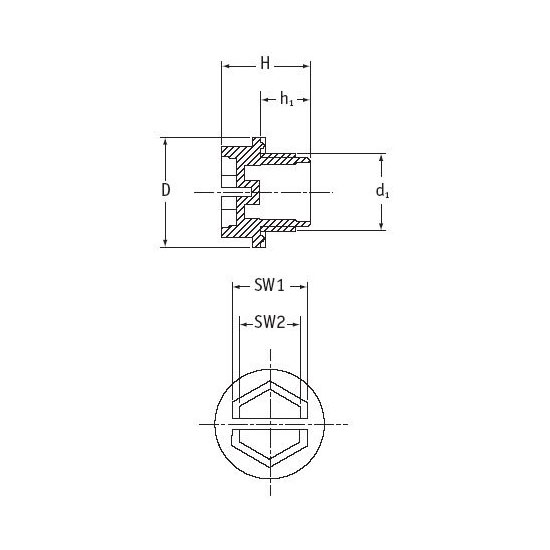

Thread Size (d1) D (mm) H (mm) h1 (mm) SW1 (mm) SW2 (mm) Type
Unit of
Measurements
Price
(Ex. GST)
Quantity Total
466997 2” x 11 68 24 15 55 51 BSP Thread
0.00 ₨
466995 1 1⁄2" x 11 56 24 15 41 37 BSP Thread
0.00 ₨
466993 5⁄8" x 14 29.5 19.5 12 22 19 BSP Thread
0.00 ₨
466992 M52 x 2 60 23 13.5 30 27 Metric Thread
0.00 ₨
466991 M48 x 2 55 23 13.5 30 27 Metric Thread
0.00 ₨
466990 M45 x 2 52 22 13.5 30 27 Metric Thread
0.00 ₨
466989 M42 x 2 50 22 13.5 30 27 Metric Thread
0.00 ₨
466988 M36 x 2 45 22 13.5 24 21 Metric Thread
0.00 ₨
466987 M33 x 2 40 22 13.5 24 21 Metric Thread
0.00 ₨
466986 M30 x 2 38 22 13.5 24 21 Metric Thread
0.00 ₨
466985 M27 x 2 33 22 13.5 24 21 Metric Thread
0.00 ₨
466983 M45 x 1.5 52 21.5 12 30 27 Metric Thread
0.00 ₨
466982 M38 x 1.5 48 20.5 12 24 21 Metric Thread
0.00 ₨
466981 M36 x 1.5 45 20.5 12 24 21 Metric Thread
0.00 ₨
466980 M32 x 1.5 40 20.5 12 24 21 Metric Thread
0.00 ₨
466979 M30 x 1.5 38 20.5 12 24 21 Metric Thread
0.00 ₨
466978 M28 x 1.5 34 20.5 12 24 21 Metric Thread
0.00 ₨
466977 M27 x 1.5 33 20.5 12 24 21 Metric Thread
0.00 ₨
466976 M26 x 1.5 32 20.5 12 24 21 Metric Thread
0.00 ₨
466975 M24 x 1.5 30 17.5 10 24 21 Metric Thread
0.00 ₨
466974 M10 x 1.5 14.5 16.5 9 9 6 Metric Thread
0.00 ₨
466973 M12 x 1 17 16.5 9 10 7 Metric Thread
0.00 ₨
466960 1 7⁄8" x 12 54 22.5 15 36 33 UNF Thread
0.00 ₨
466959 1 5⁄8" x 12 47.5 22.5 15 36 33 UNF Thread
0.00 ₨
466958 1 5⁄16" x 12 40 22.5 15 30 27 UNF Thread
0.00 ₨
466956 1 1⁄16" x 12 33 19.5 12 24 21 UNF Thread
0.00 ₨
466955 1” x 14 31.5 19.5 12 24 21 UNF Thread
0.00 ₨
466954 7⁄8" x 14 28.5 19.5 12 21 18 UNF Thread
0.00 ₨
466953 3⁄4" x 16 26 17.5 10 19 16 UNF Thread
0.00 ₨
466952 5⁄8" x 18 22 17.5 10 15 12 UNF Thread
0.00 ₨
466951 9⁄16" x 18 20.5 17.5 10 13 10 UNF Thread
0.00 ₨
466950 3⁄8" x 24 19 17.5 10 13 10 UNF Thread
0.00 ₨
466949 7⁄16" x 20 17 17.5 10 10 7 UNF Thread
0.00 ₨
466948 3⁄8" x 24 16 17.5 10 9 6 UNF Thread
0.00 ₨
462853 1 1⁄4" x 11 50 22.5 15 36 33 BSP Thread
0.00 ₨
462842 M20 x 1.5 26 17.5 10 19 16 Metric Thread
0.00 ₨
462838 M12 x 1.5 17 16.5 9 10 7 Metric Thread
0.00 ₨
462837 M10 x 1 14.5 16.5 9 9 6 Metric Thread
0.00 ₨
462836 M8 x 1 12.5 15.5 8 7 4 Metric Thread
0.00 ₨
