O-Ring Threaded Plugs

Email
O-Ring Threaded Plugs
O-Ring Threaded Plugs

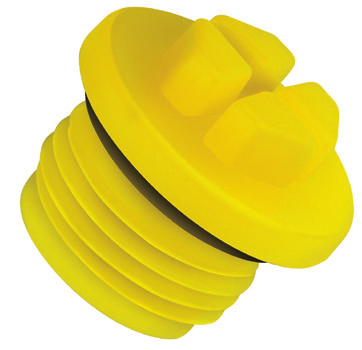

O-Ring threaded plugs suits best for UNF thread and BSP thread dimensions. These are made from yellow HDPE material. The O-ring is made of nitrite rubber which offers good grip during fixing and removing. This plug can be further tightened manually with a power tool or by using a socket or screwdriver.

Applications and Benefits of O-Ring threaded plugs

  • It is applicable for BSP/UNF threads.
  • Made from yellow HDPE material and the O-ring is made from nitrite rubber.
  • Can be fitted either manually with a power tool or with screwdriver.
  • Available in different metric thread dimensions.
Sample Part
Number

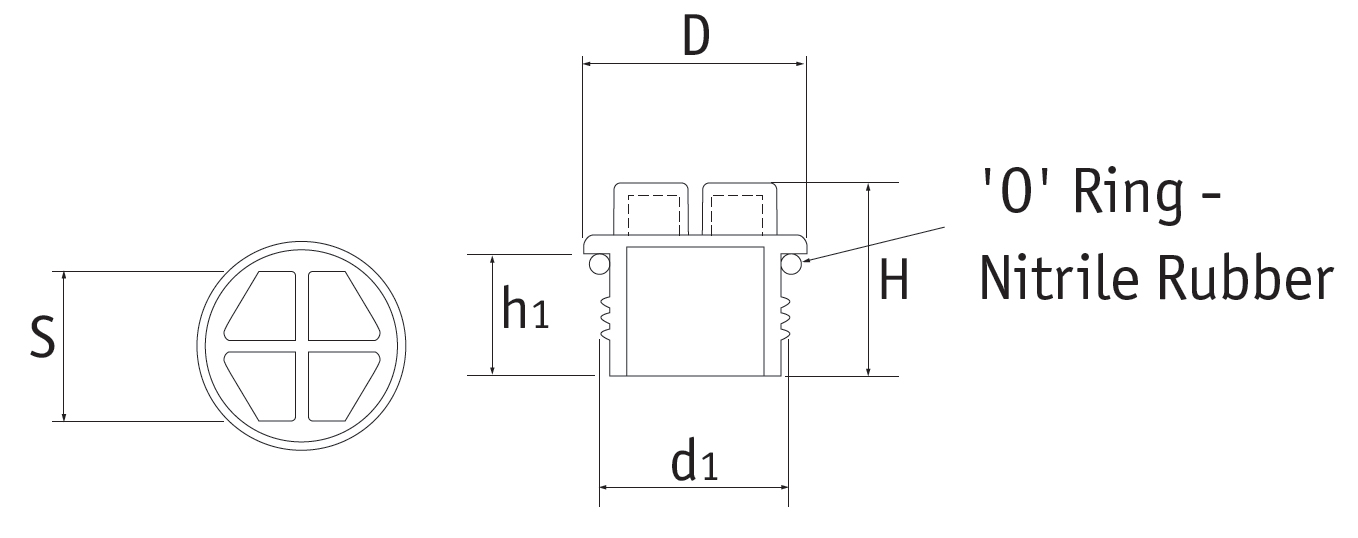

To Fit Thread Size (d1) D (mm) H (mm) h1 (mm) S (mm) Type
Unit of
Measurements
Price
(Ex. GST)
Quantity Total
498688 2" x 11 68 25 15 36 BSP Thread
0.00 ₨
498687 13⁄4" x 11 62 25 15 36 BSP Thread
0.00 ₨
498686 11⁄2" x 11 56 25 15 30 BSP Thread
0.00 ₨
498685 11⁄4" x 11 50 23.6 15 24 BSP Thread
0.00 ₨
498684 1" x 11 40 23.6 15 24 BSP Thread
0.00 ₨
498683 3⁄8" x 19 22 20.9 12.5 13 BSP Thread
0.00 ₨
498682 1⁄4" x 19 19 19.7 12.5 10 BSP Thread
0.00 ₨
498681 1⁄8" x 28 16 17.2 10 7 BSP Thread
0.00 ₨
498680 17⁄8" x 12 55 24 14 30 UNF Thread
0.00 ₨
498679 15⁄8" x 12 50 24 14 24 UNF Thread
0.00 ₨
498678 13⁄16" x 12 38 22.6 14 22 UNF Thread
0.00 ₨
498677 7⁄8" x 14 28 21.9 13.5 15 UNF Thread
0.00 ₨
498676 3⁄4" x 16 27 21.9 13.5 13 UNF Thread
0.00 ₨
498675 9⁄16" x 18 21 20.9 12.5 10 UNF Thread
0.00 ₨
498674 1⁄2" x 20 19 20.9 12.5 10 UNF Thread
0.00 ₨
498673 7⁄16" x 20 16 19.7 12.5 10 UNF Thread
0.00 ₨
498672 3⁄8" x 24 14 17.2 10 7 Metric Thread
0.00 ₨
498671 M52 x 2.0 60 25 15 7 Metric Thread
0.00 ₨
498670 M48 x 2.0 55 25 15 30 Metric Thread
0.00 ₨
498669 M42 x 2.0 50 24.6 15 24 Metric Thread
0.00 ₨
498668 M27 x 2.0 33 24.6 15 19 Metric Thread
0.00 ₨
498667 M38 x 1.5 48 20.6 12 24 Metric Thread
0.00 ₨
498666 M36 x 1.5 45 20.6 12 24 Metric Thread
0.00 ₨
498665 M22 x 1.5 28 20.4 12 15 Metric Thread
0.00 ₨
498664 M14 x 1.5 22 19.2 12 10 Metric Thread
0.00 ₨
498663 M12 x 1.5 17 19.2 12 10 Metric Thread
0.00 ₨
498662 M10 x 1.5 14.5 19.2 12 7 Metric Thread
0.00 ₨
498661 M12 x 1 17 17.2 10 10 Metric Thread
0.00 ₨
498660 M10 x 1 14.5 17.2 10 7 Metric Thread
0.00 ₨
498659 M8 x 1 12.5 17 10 6 Metric Thread
0.00 ₨
498559 7⁄8" x 14 37 21.9 13.5 22 BSP Thread
0.00 ₨
498558 3⁄4" x 14 32 21.9 13.5 19 BSP Thread
0.00 ₨
498557 5⁄8" x 14 29.5 21.9 13.5 17 BSP Thread
0.00 ₨
498556 1⁄2" x 14 27 21.9 13.5 15 BSP Thread
0.00 ₨
498555 15⁄16" x 12 42 24 14 24 UNF Thread
0.00 ₨
498554 11⁄16" x 12 35 22.6 14 19 UNF Thread
0.00 ₨
498553 1" x 14 31 22.1 13.5 17 UNF Thread
0.00 ₨
498552 5⁄8" x 18 22 20.9 12.5 13 UNF Thread
0.00 ₨
498551 M45 x 2.0 52 25 15 30 Metric Thread
0.00 ₨
498550 M36 x 2.0 45 24.6 15 24 Metric Thread
0.00 ₨
498549 M33 x 2.0 40 24.6 15 24 Metric Thread
0.00 ₨
498548 M30 x 2.0 38 24.6 15 22 Metric Thread
0.00 ₨
498547 M32 x 1.5 40 20.6 12 24 Metric Thread
0.00 ₨
498546 M30 x 1.5 38 20.6 12 22 Metric Thread
0.00 ₨
498544 M26 x 1.5 32 20.4 12 19 Metric Thread
0.00 ₨
498543 M24 x 1.5 30 20.4 12 17 Metric Thread
0.00 ₨
498542 M20 x 1.5 26 20.4 12 15 Metric Thread
0.00 ₨
498541 M18 x 1.5 24 20.4 12 13 Metric Thread
0.00 ₨
498540 M16 x 1.5 24 20.4 12 13 Metric Thread
0.00 ₨
