Adjustable Compression Latches

Email
Adjustable Compression Latches
Adjustable Compression Latches
Adjustable Compression Latches

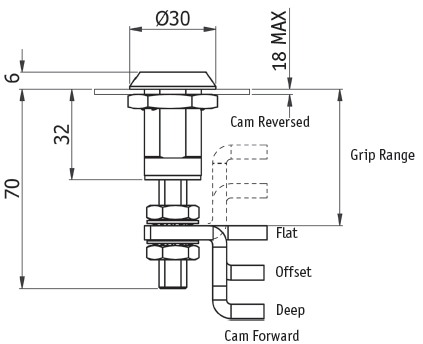

Our adjustable compression latches are made from IP 65 material. It is designed with 6mm compression. We provide 3 Cam style and the cam is applicable for both forward and reversed applications. The latches suit best for obtaining good compression and noise isolation.

Applications and Benefits of Adjustable Compression Latches

  • Provided with two fixings 20.2mmX22.2mm as well as 19.2mm to 22.2mm.
  • Provided with 3 cam style and 6mm compression.
  • The cam can be used forwarded and reversed.
  • The latches are designed to provide excellent compression and noise isolation.
Sample Part

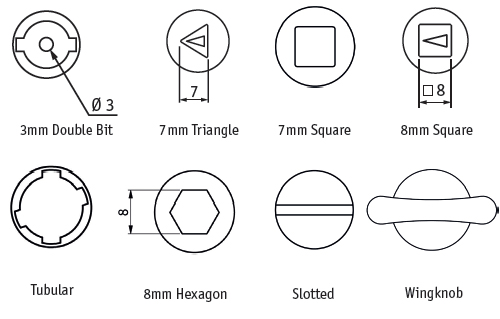

Number 		Fixing Hole Finish Head Style Cam Style Grip Range (mm) Cam Forward Grip Range (mm) Cam Reversed
Unit of
Measurements 		Price
(Ex. GST)		 Quantity Total
0404129403E 2 Black Powder Coated Wingknob Deep 67.5 - 85 41972
0.00 ₨
0404129402E 2 Black Powder Coated Wingknob Offset 53.5 - 71 28 - 44
0.00 ₨
0404129401E 2 Black Powder Coated Wingknob Flat 40 - 57 40 - 57
0.00 ₨
0404129303E 2 Black Powder Coated Tubular Key Deep 67.5 - 85 41972
0.00 ₨
0404129302E 2 Black Powder Coated Tubular Key Offset 53.5 - 71 28 - 44
0.00 ₨
0404129301E 2 Black Powder Coated Tubular Key Flat 40 - 57 40 - 57
0.00 ₨
0404126803E 2 Black Powder Coated 8mm Hexagon High Security Deep 67.5 - 85 41972
0.00 ₨
0404126802E 2 Black Powder Coated 8mm Hexagon High Security Offset 53.5 - 71 28 - 44
0.00 ₨
0404126801E 2 Black Powder Coated 8mm Hexagon High Security Flat 40 - 57 40 - 57
0.00 ₨
0404124203E 2 Black Powder Coated Slotted Deep 67.5 - 85 41972
0.00 ₨
0404124202E 2 Black Powder Coated Slotted Offset 53.5 - 71 28 - 44
0.00 ₨
0404124201E 2 Black Powder Coated Slotted Flat 40 - 57 40 - 57
0.00 ₨
0404123703E 2 Black Powder Coated 7mm Triangle Deep 67.5 - 85 41972
0.00 ₨
0404123702E 2 Black Powder Coated 7mm Triangle Offset 53.5 - 71 28 - 44
0.00 ₨
0404123701E 2 Black Powder Coated 7mm Triangle Flat 40 - 57 40 - 57
0.00 ₨
0404122703E 2 Black Powder Coated 7mm Square Deep 67.5 - 85 41972
0.00 ₨
0404122702E 2 Black Powder Coated 7mm Square Offset 53.5 - 71 28 - 44
0.00 ₨
0404122701E 2 Black Powder Coated 7mm Square Flat 40 - 57 40 - 57
0.00 ₨
0404121303E 2 Black Powder Coated 3mm Double Bit Deep 67.5 - 85 41972
0.00 ₨
0404121302E 2 Black Powder Coated 3mm Double Bit Offset 53.5 - 71 28 - 44
0.00 ₨
0404121301E 2 Black Powder Coated 3mm Double Bit Flat 40 - 57 40 - 57
0.00 ₨
0404119303E 2 Chrome Plated Tubular Key Deep 67.5 - 85 41972
0.00 ₨
0404119302E 2 Chrome Plated Tubular Key Offset 53.5 - 71 28 - 44
0.00 ₨
0404119301E 2 Chrome Plated Tubular Key Flat 40 - 57 40 - 57
0.00 ₨
0404116803E 2 Chrome Plated 8mm Hexagon High Security Deep 67.5 - 85 41972
0.00 ₨
0404116802E 2 Chrome Plated 8mm Hexagon High Security Offset 53.5 - 71 28 - 44
0.00 ₨
0404116801E 2 Chrome Plated 8mm Hexagon High Security Flat 40 - 57 40 - 57
0.00 ₨
0402129403E 1 Black Powder Coated Wingknob Deep 67.5 - 85 41972
0.00 ₨
0402129402E 1 Black Powder Coated Wingknob Offset 53.5 - 71 28 - 44
0.00 ₨
0402129401E 1 Black Powder Coated Wingknob Flat 40 - 57 40 - 57
0.00 ₨
0402129303E 1 Black Powder Coated Tubular Key Deep 67.5 - 85 41972
0.00 ₨
0402129302E 1 Black Powder Coated Tubular Key Offset 53.5 - 71 28 - 44
0.00 ₨
0402129301E 1 Black Powder Coated Tubular Key Flat 40 - 57 40 - 57
0.00 ₨
0402126803E 1 Black Powder Coated 8mm Hexagon High Security Deep 67.5 - 85 41972
0.00 ₨
0402126802E 1 Black Powder Coated 8mm Hexagon High Security Offset 53.5 - 71 28 - 44
0.00 ₨
0402126801E 1 Black Powder Coated 8mm Hexagon High Security Flat 40 - 57 40 - 57
0.00 ₨
0402124203E 1 Black Powder Coated Slotted Deep 67.5 - 85 41972
0.00 ₨
0402124202E 1 Black Powder Coated Slotted Offset 53.5 - 71 28 - 44
0.00 ₨
0402124201E 1 Black Powder Coated Slotted Flat 40 - 57 40 - 57
0.00 ₨
0402123703E 1 Black Powder Coated 7mm Triangle Deep 67.5 - 85 41972
0.00 ₨
0402123702E 1 Black Powder Coated 7mm Triangle Offset 53.5 - 71 28 - 44
0.00 ₨
0402123701E 1 Black Powder Coated 7mm Triangle Flat 40 - 57 40 - 57
0.00 ₨
0402122803E 1 Black Powder Coated 8mm Square Deep 67.5 - 85 41972
0.00 ₨
0402122802E 1 Black Powder Coated 8mm Square Offset 53.5 - 71 28 - 44
0.00 ₨
0402122801E 1 Black Powder Coated 8mm Square Flat 40 - 57 40 - 57
0.00 ₨
0402121303E 1 Black Powder Coated 3mm Double Bit Deep 67.5 - 85 41972
0.00 ₨
0402121302E 1 Black Powder Coated 3mm Double Bit Offset 53.5 - 71 28 - 44
0.00 ₨
0402121301E 1 Black Powder Coated 3mm Double Bit Flat 40 - 57 40 - 57
0.00 ₨
0402119303E 1 Chrome Plated Tubular Key Deep 67.5 - 85 41972
0.00 ₨
0402119302E 1 Chrome Plated Tubular Key Offset 53.5 - 71 28 - 44
0.00 ₨
0402119301E 1 Chrome Plated Tubular Key Flat 40 - 57 40 - 57
0.00 ₨
0402116803E 1 Chrome Plated 8mm Hexagon High Security Deep 67.5 - 85 41972
0.00 ₨
0402116802E 1 Chrome Plated 8mm Hexagon High Security Offset 53.5 - 71 28 - 44
0.00 ₨
0402116801E 1 Chrome Plated 8mm Hexagon High Security Flat 40 - 57 40 - 57
0.00 ₨
0402114203E 1 Chrome Plated Slotted Deep 67.5 - 85 41972
0.00 ₨
0402114202E 1 Chrome Plated Slotted Offset 53.5 - 71 28 - 44
0.00 ₨
0402114201E 1 Chrome Plated Slotted Flat 40 - 57 40 - 57
0.00 ₨
0402113703E 1 Chrome Plated 7mm Triangle Deep 67.5 - 85 41972
0.00 ₨
0402113702E 1 Chrome Plated 7mm Triangle Offset 53.5 - 71 28 - 44
0.00 ₨
0402113701E 1 Chrome Plated 7mm Triangle Flat 40 - 57 40 - 57
0.00 ₨
0402112803E 1 Chrome Plated 8mm Square Deep 67.5 - 85 41972
0.00 ₨
0402112802E 1 Chrome Plated 8mm Square Offset 53.5 - 71 28 - 44
0.00 ₨
0402112801E 1 Chrome Plated 8mm Square Flat 40 - 57 40 - 57
0.00 ₨
0402111303E 1 Chrome Plated 3mm Double Bit Deep 67.5 - 85 41972
0.00 ₨
0402111302E 1 Chrome Plated 3mm Double Bit Offset 53.5 - 71 28 - 44
0.00 ₨
0402111301E 1 Chrome Plated 3mm Double Bit Flat 40 - 57 40 - 57
0.00 ₨
